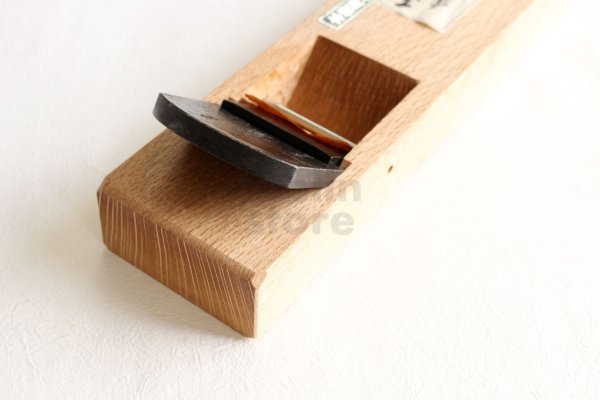

Tsunesaburo smoothing plane Maboroshi Blue 1 steel Easy maintenance blade dai L
Tsunesaburo smoothing plane Maboroshi Blue 1 steel Easy maintenance blade dai L
selling price: US$384.00
Item Description
Tsunesaburo smoothing plane Maboroshi Blue 1 steel Easy maintenance blade dai L
-- Features of This item --
Tsunesaburo is one of the most famous woodworking molding plane brand in Japan. The blade part is made of Blue #1 steel which is the highest glade steel and made by hand hammer by craft-man.
-- Item detail --
*Please select size below:
Plane blade width 65mm, Cutting width 58mm, Total length 115mm / stand size: Total length 285mm, Width 85mm, Height 36mm
Plane blade width 70mm, Cutting width 65mm, Total length 115mm / stand size: Total length 285mm, Width 90mm, Height 36mm
*Blade Material, Easy maintenance blade
Core blade: Aogami Blue 1 steel (carbon steel), Hand forged by craft-man.
Base blade: soft iron
*stand Material: Quercus myrsinifolia (Japanese shirakashi wood), wood grain varies
*Mouth: Tsutsumi-guchi
*Note: size and weight, approx
*Handling time: 14 to 60 business days / After order craftsman will give the last finish.
*Made in Japan
*A brand new, Price is include a Kanna plane.
About Tsunesaburo
Mr.Tsuenzaburo Uozumi, a first-generation plane blade maker studied under Mr. Fukuzaburo Kanna since he was a child and has mastered the secrets of process for making plane blade for 28years. He established the Tsunesaburo Plane Works Co., Ltd. in 1947. A third-generation of the Tsunesaburo family, Mr. Toru Uozumi who currently takes over a business crafts various type of plane according to the purpose of use utilizing both the traditional method and modern equipment. It provides excellent sharpness, high durability and usable from hard materials to softwood and laminated wood. The Tsunesaburo bland built a reputation all over the world especially woodworkers and craftsmen who make musical instruments.
Stable high quality
The plane is made from high class steel, mainly the finest blue steel, for core blade material and soft iron carbon steel for base blade material. The processes are all done by hand(called Koshiki tanzo). Controlling hardening and tempering, the key to make stable quality plane blade, is operated with not only depending on intuition of experienced craftmen, but using several thermometers.
*Only high-speed steel(SKH51) is done by press working.
Body stand is made from Japanese quercus myrsinifolla which is completely dried over 3 years. Hardly warped, providing strength and resistant to aged.
Special Techniques of Tsunazaburo
The easy maintenance plane blade: unnecessary “ura dashi” kanna
Regular plane has legs called “ashi” on both sides.(left below: necessary “ura dashi” kanna)
On the other hand, this easy maintenance plane blade doesn’t has legs but being processed as a large R-bending from the blade steel end point(Kaisaki) to the blade edge. Therefore, it’s only needed to whet back side of the blade even when the end of the blade is abraded.
FYI:How to “ura dashi kanna”
https://www.youtube.com/watch?v=_wSuN68Log0
-- Features of This item --
Tsunesaburo is one of the most famous woodworking molding plane brand in Japan. The blade part is made of Blue #1 steel which is the highest glade steel and made by hand hammer by craft-man.
-- Item detail --
*Please select size below:
Plane blade width 65mm, Cutting width 58mm, Total length 115mm / stand size: Total length 285mm, Width 85mm, Height 36mm
Plane blade width 70mm, Cutting width 65mm, Total length 115mm / stand size: Total length 285mm, Width 90mm, Height 36mm
*Blade Material, Easy maintenance blade
Core blade: Aogami Blue 1 steel (carbon steel), Hand forged by craft-man.
Base blade: soft iron
*stand Material: Quercus myrsinifolia (Japanese shirakashi wood), wood grain varies
*Mouth: Tsutsumi-guchi
*Note: size and weight, approx
*Handling time: 14 to 60 business days / After order craftsman will give the last finish.
*Made in Japan
*A brand new, Price is include a Kanna plane.
About Tsunesaburo
Mr.Tsuenzaburo Uozumi, a first-generation plane blade maker studied under Mr. Fukuzaburo Kanna since he was a child and has mastered the secrets of process for making plane blade for 28years. He established the Tsunesaburo Plane Works Co., Ltd. in 1947. A third-generation of the Tsunesaburo family, Mr. Toru Uozumi who currently takes over a business crafts various type of plane according to the purpose of use utilizing both the traditional method and modern equipment. It provides excellent sharpness, high durability and usable from hard materials to softwood and laminated wood. The Tsunesaburo bland built a reputation all over the world especially woodworkers and craftsmen who make musical instruments.
Stable high quality
The plane is made from high class steel, mainly the finest blue steel, for core blade material and soft iron carbon steel for base blade material. The processes are all done by hand(called Koshiki tanzo). Controlling hardening and tempering, the key to make stable quality plane blade, is operated with not only depending on intuition of experienced craftmen, but using several thermometers.
*Only high-speed steel(SKH51) is done by press working.
Body stand is made from Japanese quercus myrsinifolla which is completely dried over 3 years. Hardly warped, providing strength and resistant to aged.
Special Techniques of Tsunazaburo
The easy maintenance plane blade: unnecessary “ura dashi” kanna
Regular plane has legs called “ashi” on both sides.(left below: necessary “ura dashi” kanna)
On the other hand, this easy maintenance plane blade doesn’t has legs but being processed as a large R-bending from the blade steel end point(Kaisaki) to the blade edge. Therefore, it’s only needed to whet back side of the blade even when the end of the blade is abraded.
FYI:How to “ura dashi kanna”
https://www.youtube.com/watch?v=_wSuN68Log0
